Special edition model.

Santa Fe Calligraphy

A touch of luxury.

Introducing the new Santa Fe Calligraphy, our iconic large SUV, now with an added touch of luxury.

With new painted body coloured moudlings and stunning 20" Calligraphy wheels, this vehicle embodies elegance and style. Sink into a plush Nappa leather interior while interior trim is upgraded to aluminium with silver switch gear. A perforated steering wheel and black suede headlining make for an immersive cabin experience where luxury meets adventure.

Indulge in the perfect balance of style and comfort with Santa Fe Calligraphy.

Special edition - limited number of units available

Book a test drive

*By submitting this form I agree to receive promotional offers, news and event invitations from Hyundai NZ via email, SMS and other communication methods.


Exterior

A vision of luxury from every angle.

Unmistakable elegance

Santa Fe Calligraphy adds a suite of additional exterior features above the Limited model with unmistakable elegance in every line.

Body coloured exterior cladding

Santa Fe Calligraphy is immediately distinguishable to other Santa Fe's with the addition of body coloured exterior cladding throughout. Wheel arches, lower door trims and front & rear door bumper mouldings are all painted to match the body colour, providing unmistakable elegance.

Dark chrome front grille

Unlike other Santa Fe's, the Calligraphy model gains a dark chrome grille giving the front a unique and premium finish.

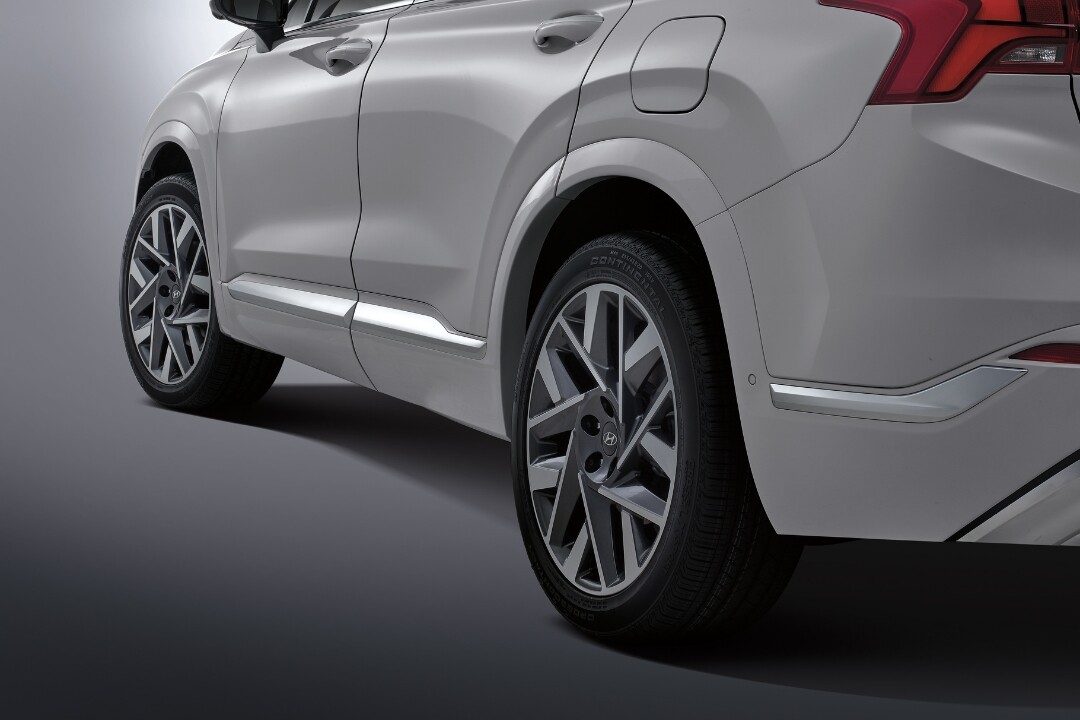

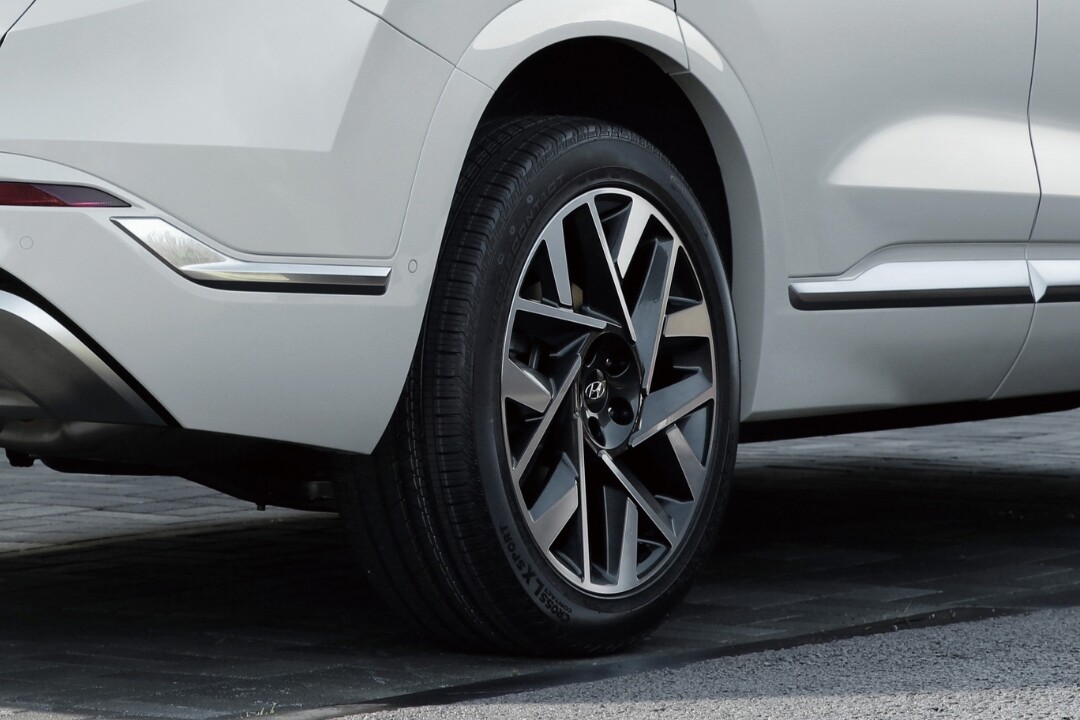

20" Calligraphy alloy wheels

20" Calligraphy alloys finish the exterior of the vehicle, providing a truly luxurious on-road presence and setting it apart from its counterparts.

Interior

Aluminium centre console trim

Santa Fe Calligraphy comes equipped with a new aluminium centre console finish adding a touch of luxury to the already familiar cockpit.

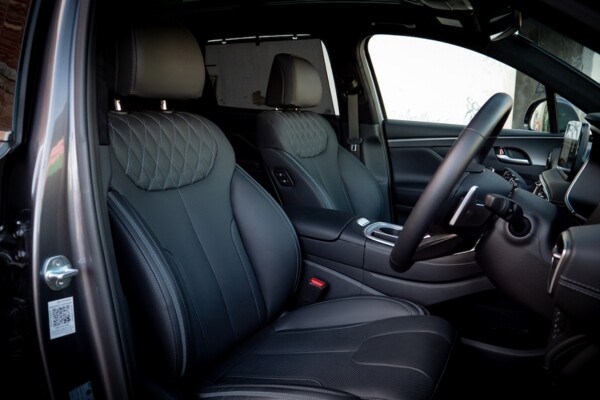

Nappa leather seat trim

All seven seats are finished in black Nappa leather trim along with black suede headlining for a sophisticated and plush cabin experience.

Perforated steering wheel

The Calligraphy variant comes equipped with a perforated steering wheel: soft to touch and extremely comfortable in the hand - perfect for long trips on the road.

Santa Fe Calligraphy Specifications

Santa Fe 2.2 Diesel Calligraphy AWD

Santa Fe 2.2 Diesel Calligraphy AWD

Pricing

Recommended Retail Price (RRP)
$94,990
Special pricing available now ^
$82,990 + 36 service plan offer
Special Offers
Good as Gold Fieldays offers

Engine

Engine Type
2.2 litre 16 valve twin overhead cam with common rail direct injection and variable geometry turbocharger
Fuel system
Common Rail Direct Injection (CRDi)
Displacement (CC)
2,151
Maximum power (kW/rpm)
148 kW / 3,800 rpm
Maximum torque (Nm/rpm)
440 Nm / 1,750-2,750 rpm

Transmission

Transmission type
8 Speed Dual Clutch Transmission (Wet Clutch Type)
Downhill Brake Control (DBC)
Hill-start Assist Control (HAC)
Electronic Shift By Wire gear selector (SBW)
Paddle shifters

Chassis

Drive system
All Wheel Drive with HTRAC
Front suspension
MacPherson strut suspension with coil springs, gas-filled shock absorbers and anti-roll stabiliser bar
Rear suspension
Multi-link suspension with coil springs, gas-filled shock absorbers and anti-roll stabiliser bar
Drive mode system
Normal, Eco, Sport & Smart modes
Terrain mode system
Snow, Mud, Sand modes

Wheels and Braking System

Wheels
20" Calligraphy Alloy
Tyres
255 / 45 R20
Full size alloy spare wheel & tyre
Tyre Pressure Monitoring System (TPMS)
Braking system
Power assisted braking system with ventilated front disc and solid rear disc brakes with ABS, EBD and BAS
Electronic Parking Brake (EPB)

Steering

Type
Motor Driven Power Steering (MDPS)
Steering column
Manual tilt & telescopic adjustment
Minimum turning circle diameter (m) - kerb to kerb
5.7
Energy absorbing collapsible steering column

Safety Features

ABS braking with Electronic Brake-force Distribution (EBD)
Brake Assist System (BAS)
Electronic Stability Control (ESC)
Traction Control System (TCS)
Vehicle Stability Management (VSM)
Forward Collision-Avoidance with Junction Assist (FCA-JX)
Reversing Collision Avoidance assist (RCA)
Blind-spot Collision Avoidance assist (BCA)
Blind-spot View Monitor system (BVM)
Rear Cross-traffic Collision Avoidance assist (RCCA)
Lane Keeping Assist (LKA)
Lane Following Assist (LFA)
Smart Cruise Control with stop & go (SCC)
High Beam Assist (HBA)
Driver Attention Alert (DAA)
Safe Exit Assist (SEA)
Rear Occupant Alert (ROA)
7 Airbags (Dual Front, Side, Curtain and Centre Airbag)
Front seatbelt pretensioners and load limiters
3-point tether child seat anchor points
ISOFIX child seat anchor points
Height adjustable seatbelts (front)
3-point lap diagonal (ELR) seatbelts
Power operated child safety rear door locks
Electro-Chromatic Rear-view Mirror (ECM)
Automatic dusk sensing headlights
Rain sensing wiper system
Remote Smart Park Assist (RSPA)
Rear park assist system
Front park assist system
Reversing camera
Surround View Monitor (SVM)
First aid kit

Exterior Features

Panoramic sunroof
Smart power tailgate
Electrically adjustable side mirrors
Electric folding side mirrors
Heated side mirrors
LED head lights (low-beam)
Bi-LED head lights
LED Daytime Running Lights (DRL)
LED tail lights
Rear spoiler with high mounted LED stop light
Privacy glass
Laminated acoustic windscreen
Satin chrome exterior trim
Mud guards
Roof rails
Body coloured cladding
Dark chrome grille

Interior Features

7 Seats
Cloth interior trim
Full leather interior trim **
Black Nappa leather interior trim**
Leather steering wheel and gearshift trim **
Perforated leather steering wheel
Premium cloth pillar & roof lining
Black suede headlining
Aluminium interior trim including centre console and switchgear
Driver seat 10-way electric adjustment
Driver seat 14-way electric adjustment
Passenger seat 8-way electric adjustment
Driver memory seat function
Heated front (3-stage) & outboard 2nd row seats (2-stage)
Ventilated front seats (3-stage)
Power windows
Wireless smart phone charging ***
Head-Up Display (HUD)
LED interior lighting
2nd & 3rd row split folding function

Security

Proximity key and engine start / stop button
Keyless entry with anti-theft alarm
Engine immobiliser
Hyundai Active Locking Operation (HALO) including speed sensing auto door locking

Comfort and Convenience

8" touch screen audio system with radio, MP3 functionality
10.25" touch screen audio system with satellite navigation, radio, MP3 functionality
Apple CarPlay® & Android Auto® compatibility
wired
Harman Kardon 10 speaker premium audio system including subwoofer
4 speakers and 2 tweeters
Bluetooth handsfree phone system
Steering wheel mounted audio and cruise controls
2 x front USB input
2 x 2nd row USB input
3rd row USB input
Dual zone climate control air-conditioning with pollen filter
3rd row air conditioning
Automatic windscreen defog
Trip computer including distance to empty, average fuel consumption, average speed and outside temperature display
12.3" Colour TFT driver information display
Illuminated vanity mirror in driver and front passenger sunvisors

Auto Link car connectivity - Bluetooth enabled

Past driving history including driving statistics & location monitoring
Remote vehicle monitoring including tyre pressures, fuel level & location
Accident & emergency assistance

Auto Link Premium car connectivity - SIM enabled

Remote vehicle functions including security, engine starting & air-conditioning
Geo-fencing enabled
Guard & valet modes

Weights and Capacities

Fuel tank capacity (litres)
67
Boot capacity (VDA litres) - 3rd row down
571
Kerb weight (kg) lightest / heaviest
1,820 / 1,943
Towing capacity - braked (kg)
2,500
Towing capacity - unbraked (kg)
750

Exterior Dimensions

Wheelbase (mm)
2,765
Overall length (mm)
4,785
Overall width (mm)
1,900
Overall height (mm)
1,710
Wheel track - front / rear (mm)
1,637 / 1,647
Minimum ground clearance (mm)
176

Sustainability

Combined fuel economy (litres / 100km)*
7.1
CO2 Emissions (g/km)
187

Warranties

10 year / 200,000 km anti perforation corrosion body warranty
3 year / 100,000 km mechanical warranty
3 year / 100,000 km roadside assistance package
Available
Not available

Specifications, features, equipment and colours shown on this website are subject to change without notice or obligation.

Prices shown do not include on road costs.

*Energy consumption figures are based on WLTP tests and factory information. These figures are provided to assist you in comparing the energy consumption of the Santa Fe range with other vehicles. The actual energy consumption will depend on many factors, including your driving habits, the prevailing conditions and your vehicle’s equipment, condition and use.

**Finishes specified as leather contain a combination of genuine leather, polyurethane leather (leather substitute) and man-made materials.

***Compatible smart phones only.

****Vehicles used for commercial purposes such as taxi vehicles, the high voltage battery warranty is limited to 3 years/ 100,000km (whichever comes first).
