• Hyundai’s heat management innovation maximises EV driving range in low temperatures
• EV drivers can heat the cabin without a significant impact on electric driving range
• Kona Electric wins Norwegian Automotive Federation’s real-range validation test

Hyundai Motor Company have today revealed new details of their innovative heat pump system, deployed in Hyundai’s global electric vehicle (EV) line-up to maximize their all-electric driving range in low temperatures.

Hyundai’s heat pump is a leading heat management innovation that maximizes the distance that Hyundai EVs can travel on a single charge, scavenging waste heat to warm the cabin. It enables EV drivers to heat their car’s cabin in cold weather without significantly impacting electric driving range, unlike other EVs.

The technology was first introduced in 2014. Comprising a compressor, evaporator and condenser, the heat pump captured waste heat given off by the vehicle’s electrical components, recycling this energy to heat the cabin more efficiently.

The industry-leading heat pump system has now been developed further for new EVs from Hyundai Motor Group. The new system scavenges waste heat from an increased number of sources for optimum cold-weather EV range. These innovations mean that Hyundai EVs offer more consistent range in temperatures where other EVs start to see a significant decline in the distance possible from a single charge. Equipped with the latest heat pump technology, the Kona Electric proved this in a recent test in Norway, the most advanced EV market in the world.

Kona Electric wins Norwegian real-range validation test

The Norwegian Automotive Federation (NAF) recently compared 20 EVs in cold and warm weather conditions to identify models with the most consistent driving range and charging performance. The test monitored the performance deviation of each vehicle in cold conditions compared to quoted manufacturer figures.

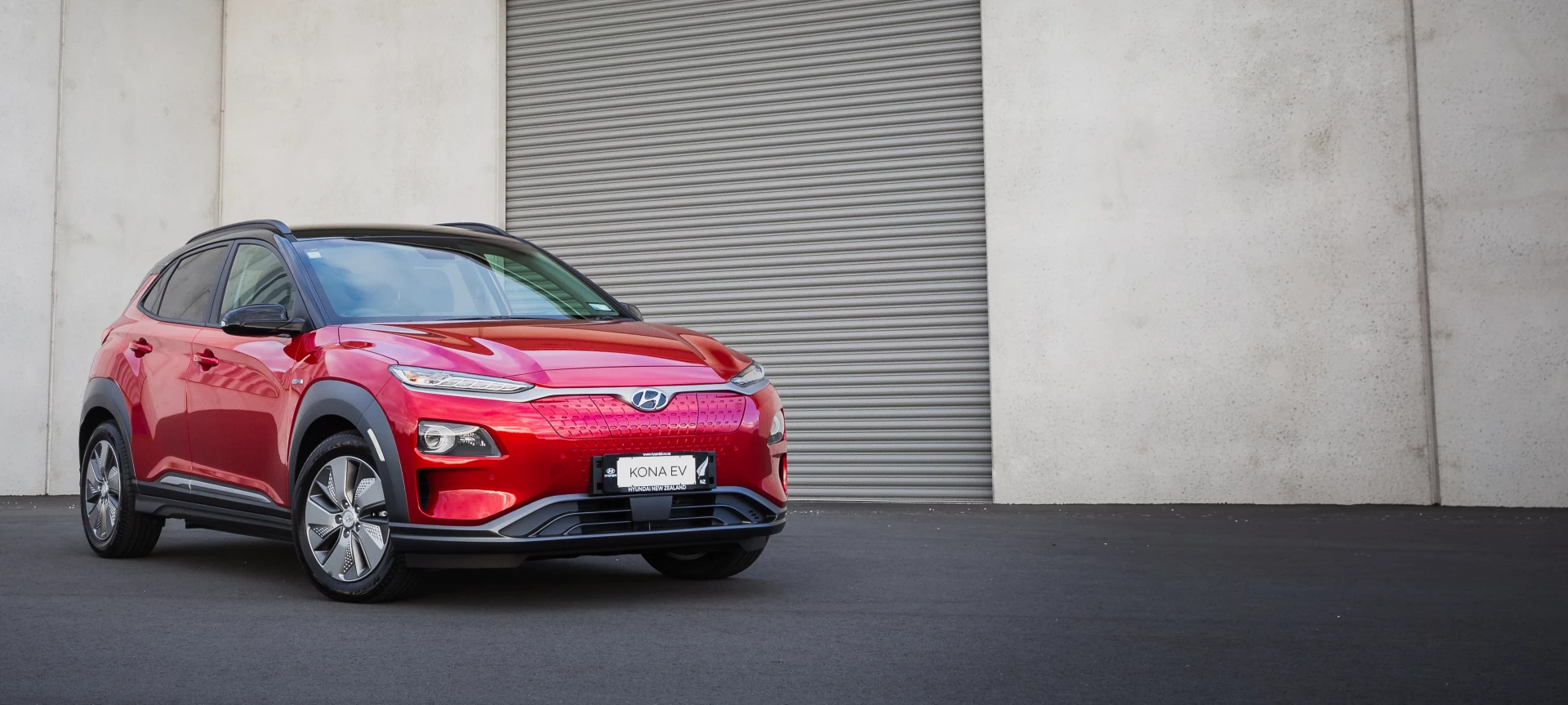

The Kona Electric took first place, travelling 405km in the cold – compared to the 449km quoted under WLTP combined cycle testing conditions (23°C / 73°F). In severe cold weather, the Kona Electric offered 91 percent of its WLTP combined cycle range, deviating just 9 percent from its claimed all-electric driving range.

How it works: EV cabin heating without the energy drain

Hyundai Motor Group’s heat pump technology made its debut six years ago. Since then, the industry-leading heat pump technology has been developed further for new EVs by the company. It now harvests significantly more energy by recycling additional waste heat not only from power electrics (PE) modules (such as drive motors, on-board chargers, and inverters), but also from the battery pack and slow charger.

The system uses the heat generated by these components to vaporize refrigerant from liquid to gas form. High-pressure gas is discharged from the compressor and forced into a condenser to be converted back into a liquid. This process generates additional heat energy that is recovered by the heat pump and used to warm the cabin.

This captured energy improves the efficiency of the HVAC (heating, ventilation and air conditioning) system, recycling it to more efficiently heat up the cabin and minimize battery power consumption. By reducing the load on the battery, the heat pump cuts energy consumption from the HVAC system, maximizing the available electric driving range of the car.

Hyundai Motor Group continue to develop their heat pump technology to yield even greater improvements in energy capture and efficiency. The system has been gradually refined since its 2014 introduction through extreme cold weather testing in Northern Sweden, where temperatures can get as low as -35°C (-31°F) in the winter. By testing in extreme cold temperatures, research engineers have identified additional ways to recycle as much waste heat as possible to increase the efficiency of the heat pump system. Testing the technology in these conditions ensures the heat pump is capable of operating in even the coldest environments.

Battery pack heat management enhances EV driving range

The heat pump is one of a number of innovations found in Hyundai’s current generation of EVs, with heat management also used to realise major improvements in EV battery packs.

A water-cooling system for Hyundai’s EV battery packs, rather than conventional air cooling, have yielded further increases in range without increasing physical dimensions. This development means battery cells in Hyundai EVs can be packaged much more tightly, with water-cooling channels taking up less space than air-cooling channels, increasing battery density by up to 35 percent.

This innovation means the latest EVs from Hyundai offer around twice as much driving range and battery capacity compared to the their first-generation EVs – and are capable of travelling significantly further on a single charge.

A study carried out by Korea’s Ministry of the Environment on the Hyundai Kona Electric found that the heat pump significantly reduced battery consumption in cold conditions. When the car was driven in temperatures of -7°C (19°F) with the HVAC system activated, it was able to maintain 90 percent of its driving range compared to journeys undertaken at an ambient 26°C (79°F) – setting a new benchmark for other EVs. By contrast, many EVs offered by other manufacturers saw their total electric driving range drop by between 18 and 43 percent under the same test conditions.

Further development of heat pump technology

Hyundai continue to hone and improve the heat pump system and other heat management innovations, with the technologies currently informing the development of next-generation EVs.

Under its ‘Strategy 2025’ plan, Hyundai Motor aims to sell 670,000 battery EVs and FCEVs (fuel cell electric vehicles) annually and become a top-three EV manufacturer by 2025.
