Hyundai Mighty EX9 Truck

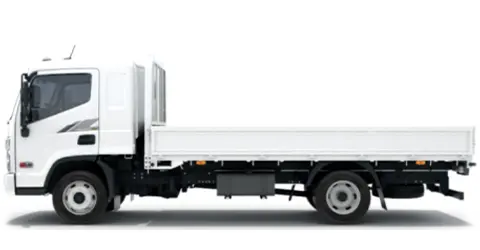

Mighty EX9 Auto

Mighty EX9 Auto

Engine

Type
Turbo Charger Intercooler

4 stroke-cycle, water-cooled, direct-injection diesel engine
Number of Cylinder
4 in-line
Piston Displacement (cc)
3.933
Max. Power** (ps/rpm) Euro V
170/2,500 (125Kw)
Max. Torque** (lb ft/rpm) Euro V
448/1,400 (608Nm)
Fuel System Injection pump
Denso Common rail system

Transmission

Type
6 Speed
Version
Allison 1000x fe
Drive
Lock up Torque Converter
Park Pawl
PTO
Preperation for PTO
Permissable Torque

339 nm
(min rpm 1200)

Front Axle

Type
Reverse Elliot type “I” beam
Capacity Type
3,100

Rear Axle

Type

6400

Tyre and Wheel

Type
Single Front, Dual Rear
Tyre Front/Rear
215/75R17.5- 12PR
Wheel Front/Rear
17.5 x 6.00

Steering

Steering
Power assisted
Adjustable Steering Wheel

Service Brake

Front/Rear
Disc/Disc
Vehicle Dynamic Control (VDC)
(ESC) Electronic Stability Control, (ABS) Anti Brake Skid, (HSA) Hill Start Assist, (ESS) Emergency Stop Signal

Parking Brake

Actuation
Internal expanding type on propeller shaft at the rear of transmission assy

Exhaust Brake

Type
Vacuum operated, butterfly valve type

Suspension

Type Front/Rear
Semi-elliptic, laminated Leaf springs
Shock absorber
Gas telescopic type on the FRONT/REAR axle

Exhaust system

General
Horizontal

Fuel Tank

Capacity
100ℓ

Frame

Type
“H” type frame with channel sectional side rail & cross members, side rail is reinforced with outer stiffeners
Main section side rail dimension (mm)
Depth x Flange x Thickness : 216 x 70 x 6t

Weights

*Chassis cab weight kg Range
2800 -2950
**Max Gross Vehicle Weight
8500 kg
Gross vehicle weight Front/Rear
3100/6400 kg

Electrical system

Airbags
Driver and passenger airbags
Audio
M450 (Radio+Aux/MP3 USB) Multidisplay
Locking
Central Door Locking + Power Window + Keyless Entry + Semi Trim
Steering Wheel Controls
Bluetooth Phone - Audio - Cruise Control
Head lamps
Semi-sealed Beam / Adjustable Dim
Daytime Running Lamps
Front combination lamps
Turn signal / Hazard-Amber, Position - White
Fog lamps
White
Rear combination lamps
Turn signal / Hazard-Amber, Tail / Stop - Red
License plate lamp
White
Service Lamp Circuit
Daytime Running Lights
12v Socket in Dash
Yes x2
Power Windows
Back-up lamp
White

Instruments

Meter Cluster
Fixed type
Meter
Speedometer / Tachometer / Fuel gauge / Water temperature gauge LCD with odometer / Trip meter / Clock
Warning lamps & Indicators
Brake fluid level of reservoir / Parking brake / Oil pressure / Battery charge / Tell-tale lights for head light high beam / Turn signals / Door open / Seat belt / Low fuel
Horn
Single, Electric type
Cruise control
Heating / Air conditioning (Manual)
Steering Wheel Audio Remote Control
Steering Wheel Auto Cruise Control

Body/Cab

Type Mounting
Tilt type with torsion bars, all steel welded construction with safety zone design Rigid or Semi floating type
Windshield
One piece type with laminated glass, tinted upper section
Windshield Wipers
Dual electric three speed (intermittent / low / fast) wipers & washer
Mirrors
Mirror - Heated
Driver’s Seat
Coil Suspension, urethane foam cushioned STD trim
Passenger’s seat
Bench seat, STD Trim
Steering Column
Fully Adjustable
Roof Marker Lights
Overhead Storage
Mirror Width
Narrow STD (optional LONG)

Active Safety Features

Electronic Stability Control
ABS Braking
Daytime Running Lights
Hill Start Assist
Auto Headlights
Bluetooth Hands Free
Heated Mirrors

Warranty

3 year/150,000 km (whichever occurs first)
Manufacturer’s warranty
Included
Not Included

(Specifications, features, equipment and colours shown on this website are subject to change without notice or obligation).


*Source: Australian Design Rule 81/02 static laboratory combined average city and highway cycle test. Fuel consumption figures are provided as a guide for comparative purposes. Fuel consumption will vary depending on a combination of driving habits and the condition of the vehicle. To find out more information about fuel economy and how to improve fuel economy, visit http://www.eeca.govt.nz
